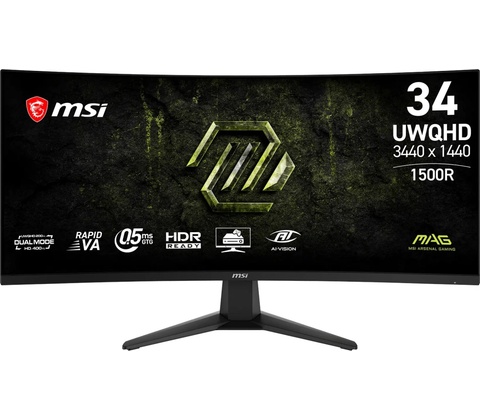

MSI MAG 346CQDF E20

MSI Gaming MAG 346CQDF E20, 34" Rapid VA zakřivený /3440x1440(UWQHD)/200Hz/0,5ms/DP/2xHDMI/černá

Website Name MAG 346CQDF E20

Color ID1/Black-Black

Local Dimming NA

Display

Screen Size 34" (86.36 cm)

Active Display Area (mm) 797.22(H) x 333.72(V)

Curvature Curve 1500R

Panel Type Rapid VA

Resolution 3440x1440 (UWQHD)

Pixel pitch (mm) 0.23175(H)x0.23175(V)

Aspect Ratio 21:9

Dynamic Refresh Rate technology AMD FreeSync™ Premium

Dynamic Refresh Rate Activated Range UWQHD (3440 x 1440) : 48~200Hz / HD (1720 x 720) : 48~400Hz

HDR (High dynamic range) HDR Ready

SDR Brightness (nits) 300

HDR Brightness (Peak nits) -

• Contrast Ratio 4000:1
• DCR (Dynamic Contrast Ratio) 100000000:1
• Signal Frequency UWQHD:71.6~298 KHz(H) / 48~200 Hz(V), HD:36.5~304 KHz(H) / 48~400 Hz(V)
• Refresh Rate UWQHD (3440 x 1440): 200Hz, HD (1720 x 720): 400Hz

Response Time (MPRT) 1ms(MPRT)

Response Time (GTG) 0.5ms (Min.)

Response Time (Tr + Tf) 14.863ms

View Angles 178°(H)/178°(V)

NTSC (CIE1976 area percentage/overlap) 105%/80%

NTSC (CIE1931 area percentage/overlap) 85%/75% sRGB (CIE1976 area percentage/overlap) 120%/95% sRGB (CIE1931 area percentage/overlap) 120%/95%

Adobe RGB (CIE1976 area percentage/overlap) 100%/85%

Adobe RGB (CIE1931 area percentage/overlap) 85%/80%

DCI-P3 (CIE1976 area percentage/overlap) 97%/95%

DCI-P3 (CIE1931 area percentage/overlap) 88%/85%

Rec.709 (CIE1976 area percentage/overlap) 120%/95%

Rec.709 (CIE1931 area percentage/overlap) 120%/95%

Rec.2020 (CIE1976 area percentage/overlap) 68%/68%

Rec.2020 (CIE1931 area percentage/overlap) 60%/60%

Quantum Dot Film NA

Surface Treatment Anti-glare

Touch Screen Non-touch

Display Colors 1.07B

Color bit 10 bits (8 bits + FRC)

• Note_DP UWQHD:3440 x1440 (Up to 200Hz), HD:1720 x 720 (Up to 400Hz)
• Note_HDMI UWQHD:3440 x1440 (Up to 100Hz), HD:1720 x 720 (Up to 400Hz)

Note_DVI N/A

VESA DisplayHDR NA

VESA ClearMR NA

Delta E NA

I/O Ports

HDMI 2

HDMI version 2.0b

HDMI HDCP version 2.3

DisplayPort 1

DisplayPort version 1.4a (HBR3)

DisplayPort HDCP version 2.3

Thunderbolt NA

Thunderbolt version NA

Thunderbolt HDCP version NA

USB Type C (DisplayPort Alternate) NA

DVI NA

D-Sub NA

Line-in NA

Mic-in NA

Mic-in upstream NA

Headphone-out 1

Audio Combo NA

USB 2.0 Type A NA

USB 2.0 Type B NA

USB 2.0 Micro USB Type B N/A

USB 2.0 Type C NA

USB 3.2 Gen 1 Type A NA

USB 3.2 Gen 1 Type B NA

USB 3.2 Gen 1 Type C NA

USB 3.2 Gen 2x2 Type C NA

USB 3.2 Gen 2x2 Type A NA

Card reader NA

Lock type Kensington Lock

Speaker NA

Webcam NA

Lan Port NA

Power

Country EU

Territory EU

Entity EU OBD

Power Type Internal Power Board

Power Input 100~240V, 50/60Hz

On-mode Power Consumption (KWh/1000h) 31

Annual Energy Consumption (KWh) 45

Standby-mode Power Consumption (W) 0.5

Off-mode Power Consumption (W) 0.3

Energy Efficiency Rating F

Adapter's KC safety Number NA

Power Cord Type C13

QC Output NA

QC Output Power NA

PD Output NA

PD Output Power NA

Warranty

Warranty 36M

Design

Adjustment (Tilt) -5° ~ 20°

Adjustment (Swivel) NA

Adjustment (Height) NA

Adjustment (Pivot) NA

VESA Mounting 100x100mm

Frameless Design Yes

Console Mode YES

HDMI CEC YES

Firmware Update YES

Stand Attachment Method Toolless locking

Stand Type Low-profile (Tilt only)

Stand with Integrated Mini PC Mount NA

KVM Version NA

PIP/PBP Support

Optix Scope Support

Smart Crosshair Support

Remote Display NA

AI Gaming AI Vision

MSI OLED Care NA

Scaler FW Update Update by Firmware Update Utility (DP)

Carton

Carton Item (SG14) SG14-M1S234A-MNT pcs/Carton 1

Pallet pallet Q'ty (by air) pcs 18

Q'ty/20cy (by air) pcs 180

Q'ty/40cy (by air) pcs 378

Dimension (L)(by air) mm 1219

Dimension (W)(by air) mm 1016

Dimension (H)(by air) mm 1413

Net Weight (by air) kg 139

Gross Weight (by air) kg 203 pallet Q'ty (by sea) pcs 30

Q'ty/20cy (by sea) pcs 300

Q'ty/40cy (by sea) pcs 630

Dimension (L)(by sea) mm 1219

Dimension (W)(by sea) mm 1016

Dimension (H)(by sea) mm 2179

Net Weight (by sea) kg 214

Gross Weight (by sea) kg 321

Dimension & Weight (product)

Product Dimension with Stand (WxDxH) (mm) 808.00 x 269.49 x 458.82

Product Dimension with Stand (WxDxH) (inch) 31.81 x 10.61 x 18.06

Product Dimension without Stand (WxDxH) (mm) 808.00 x 111.93 x 363.92

Product Dimension without Stand (WxDxH) (inch) 31.81 x 4.41 x 14.33

Stand Dimension (WxDxH) (mm) 379.66 x 269.49 x 138.87

Stand Dimension (WxDxH) (inch) 14.95 x 10.61 x 5.47

Weight (Net kg) 6.37

Weight (Net lbs) 14.04

Weight Without Stand (kg) 5.6

Weight Without Stand (lbs) 12.35

Dimension & Weight (box)

Inside Carton Dimension (WxDxH) (cm) 92 x 17 x 46.8

Inside Carton Dimension (WxDxH) (inch) 36.22 x 6.69 x 18.43

Outer Carton Dimension (WxDxH) (cm) 94 x 19 x 50.1

Outer Carton Dimension (WxDxH) (inch) 37.01 x 7.48 x 19.72

Weight (Gross kg) 9.93

Weight (Gross lbs) 21.89

Accessories

DisplayPort Cable 1

DisplayPort Cable Version 1.4a

HDMI Cable 0

HDMI Cable Version NA

DVI Cable 0

DVI Cable Version NA

USB Type A to Micro USB Type B cable 0

USB Type A to Type B Cable 0

USB Type C to Type A Cable 0

USB Type C to Type C Cable 0

Thunderbolt Cable 0

VGA Cable 0 3.5mm audio Cable 0 3.5mm combo audio Cable 0 3.5mm Mic Cable 0

Power Cord 1

AC Adaptor 0

Quick Guide 1

Warranty Card 0

Mouse Bungee Unit 0

VESA Screw 0

Switch Case 0

Portable Screen Protection Case 0

Monitor Hood 0

Speaker (Accessories) 0

Model Info

Segment Name2 MAG 346CQ E20

Segment Name MAG

Series Name LCD

Segment Name3 MAG 346CQDF E20

Extra Info

EOL Date

Barcode Info

UCC14 10824142451141

UPC 824142451144

JAN

EAN 4711377414739
