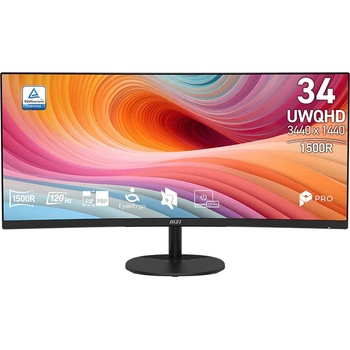

MSI PRO MP341CQ E12

MSI monitor PRO MP341CQ E12, 34" VA zakřivený /3440x1440 (UWQHD)/120Hz/1ms/2 x HDMI/DP/černý

Website Name PRO MP341CQ E12

Color ID1/Black-Black

Local Dimming NA

Display

Screen Size 34" (86.36 cm)

Active Display Area (mm) 797.22(H) x 333.72(V)

Curvature Curve 1500R

Panel Type VA

Resolution 3440x1440 (UWQHD)

Pixel pitch (mm) 0.23175(H)x0.23175(V)

Aspect Ratio 21:9

Dynamic Refresh Rate technology Adaptive-Sync

Dynamic Refresh Rate Activated Range 48~120Hz

HDR (High dynamic range) HDR Ready

SDR Brightness (nits) 300

HDR Brightness (Peak nits) NA

• Contrast Ratio 3500:1
• DCR (Dynamic Contrast Ratio) 100000000:1

Signal Frequency 70.73~178.8 KHz(H) / 48~120 Hz(V)

Refresh Rate 120Hz

Response Time (MPRT) 1ms(MPRT)

Response Time (GTG) 4ms

Response Time (Tr + Tf) TBD

View Angles 178°(H)/178°(V)

NTSC (CIE1976 area percentage/overlap) 100%/86%

NTSC (CIE1931 area percentage/overlap) 86%/80% sRGB (CIE1976 area percentage/overlap) 114%/98% sRGB (CIE1931 area percentage/overlap) 121%/99%

Adobe RGB (CIE1976 area percentage/overlap) 98%/89%

Adobe RGB (CIE1931 area percentage/overlap) 90%/84%

DCI-P3 (CIE1976 area percentage/overlap) 91%/91%

DCI-P3 (CIE1931 area percentage/overlap) 90%/90%

Rec.709 (CIE1976 area percentage/overlap) 114%/98%

Rec.709 (CIE1931 area percentage/overlap) 121%/99%

Rec.2020 (CIE1976 area percentage/overlap) 66%/66%

Rec.2020 (CIE1931 area percentage/overlap) 64%/64%

Quantum Dot Film NA

Surface Treatment Anti-glare

Touch Screen Non-touch

Display Colors 1.07B

Color bit 10 bits (8 bits + FRC)

Note_DP 3440X1440 (Up to 120Hz)

Note_HDMI 3440 x 1440 (Up to 100Hz)

Note_DVI N/A

VESA DisplayHDR NA

VESA ClearMR NA

Delta E NA

I/O Ports

HDMI 2

HDMI version 2.0b

HDMI HDCP version 2.3

DisplayPort 1

DisplayPort version 1.4a (HBR2)

DisplayPort HDCP version 2.3

Thunderbolt NA

Thunderbolt version NA

Thunderbolt HDCP version NA

USB Type C (DisplayPort Alternate) NA

DVI NA

D-Sub NA

Line-in NA

Mic-in NA

Mic-in upstream NA

Headphone-out 1

Audio Combo NA

USB 2.0 Type A NA

USB 2.0 Type B NA

USB 2.0 Micro USB Type B NA

USB 2.0 Type C NA

USB 3.2 Gen 1 Type A NA

USB 3.2 Gen 1 Type B NA

USB 3.2 Gen 1 Type C NA

USB 3.2 Gen 2x2 Type C NA

USB 3.2 Gen 2x2 Type A NA

Card reader NA

Lock type Kensington Lock

Speaker 2Wx 2

Webcam NA

Lan Port NA

Power

Country EU

Territory EU

Entity EU OBD

Power Type Internal Power Board

Power Input 100~240V, 50/60Hz

On-mode Power Consumption (KWh/1000h) SDR:25 HDR:50

Annual Energy Consumption (KWh) 44

Standby-mode Power Consumption (W) 0.5

Off-mode Power Consumption (W) 0.3

Energy Efficiency Rating E (SDR) G (HDR)

Adapter's KC safety Number NA

Power Cord Type C13

QC Output NA

QC Output Power N/A

PD Output NA

PD Output Power N/A

Warranty

Warranty 36M

Design

Adjustment (Tilt) -3.5° ~ 21.5°

Adjustment (Swivel) NA

Adjustment (Height) NA

Adjustment (Pivot) NA

VESA Mounting 100x100mm

Frameless Design Yes

Console Mode v

HDMI CEC v

Firmware Update v

Stand Attachment Method Screw locking

Stand Type Low-profile (Tilt only)

Stand with Integrated Mini PC Mount NA

KVM Version NA

PIP/PBP Support

Optix Scope NA

Smart Crosshair NA

Remote Display NA

AI Gaming NA

MSI OLED Care NA

Scaler FW Update NA

Carton

Carton Item (SG14) SG14-M1S287A-MNT pcs/Carton 1

Pallet pallet Q'ty (by air) pcs 14

Q'ty/20cy (by air) pcs 140

Q'ty/40cy (by air) pcs 294

Dimension (L)(by air) mm 1200

Dimension (W)(by air) mm 100

Dimension (H)(by air) mm 1315

Net Weight (by air) kg 9.9

Gross Weight (by air) kg 13.7 pallet Q'ty (by sea) pcs 24

Q'ty/20cy (by sea) pcs 240

Q'ty/40cy (by sea) pcs 504

Dimension (L)(by sea) mm 1200

Dimension (W)(by sea) mm 100

Dimension (H)(by sea) mm 2100

Net Weight (by sea) kg 17

Gross Weight (by sea) kg 28

Dimension & Weight (product)

Product Dimension with Stand (WxDxH) (mm) 809.34 x 237 x 469.54

Product Dimension with Stand (WxDxH) (inch) 31.86 x 9.33 x 18.49

Product Dimension without Stand (WxDxH) (mm) 809.34 x 106.79 x 365.84

Product Dimension without Stand (WxDxH) (inch) 31.86 x 4.2 x 14.4

Stand Dimension (WxDxH) (mm) 210 x 237 x 176.57

Stand Dimension (WxDxH) (inch) 8.27 x 9.33 x 6.95

Weight (Net kg) 7.1

Weight (Net lbs) 15.65

Weight Without Stand (kg) 6

Weight Without Stand (lbs) 13.23

Dimension & Weight (box)

Inside Carton Dimension (WxDxH) (cm) 98.5 x 19.8 x 49

Inside Carton Dimension (WxDxH) (inch) 38.78 x 7.8 x 19.29

Outer Carton Dimension (WxDxH) (cm) 100 x 21.3 x 51.3

Outer Carton Dimension (WxDxH) (inch) 39.37 x 8.39 x 20.2

Weight (Gross kg) 11.1

Weight (Gross lbs) 24.47

Accessories

DisplayPort Cable 1

DisplayPort Cable Version 1.4a

HDMI Cable 0

HDMI Cable Version N/A

DVI Cable 0

DVI Cable Version N/A

USB Type A to Micro USB Type B cable 0

USB Type A to Type B Cable 0

USB Type C to Type A Cable 0

USB Type C to Type C Cable 0

Thunderbolt Cable 0

VGA Cable 0 3.5mm audio Cable 0 3.5mm combo audio Cable 0 3.5mm Mic Cable 0

Power Cord 1

AC Adaptor 0

Quick Guide 1

Warranty Card 0

Mouse Bungee Unit 0

VESA Screw 0

Switch Case 0

Portable Screen Protection Case 0

Monitor Hood 0

Speaker (Accessories) 0

Model Info

Segment Name2 MP341CQ E12

Segment Name PRO

Series Name LCD

Segment Name3 MP341CQ E12

Extra Info

EOL Date

Barcode Info

UCC14 10824142445249

UPC 824142445242

JAN

EAN 4711377395502
